UNIFRAX CERAMIC BLANKET

HIGH TEMPERATURE INSULATION

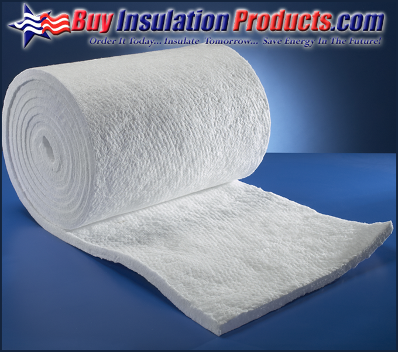

CERAMIC FIBER INSULATING BLANKET




Unifrax Durablanket S is a flexible insulation blanket that is composed of interwoven ceramic fibers.  Durablanket S is used for extreme high temperature applications calling for material that can take up to 2150F.




The Fiberfrax Durablanket family of lightweight needled blankets are manufactured from Fiberfrax refractory ceramic fibres and provide effective solutions to a variety of thermal management problems. Fiberfrax Durablanket products offer superior insulating performance, excellent chemical resistance, flexibility and resilience. Fiberfrax Durablanket products are completely inorganic and so retain their strength, flexibility and thermal properties in many working environments, without the generation of smoke or fumes.

Fiberfrax Durablanket S is a premium grade product made from spun 1250°C ceramic fibres. The extra long spun fibres make it one of the strongest blankets available. This coupled with its superior resilience make it particularly tough and suitable for applications involving further handling or in difficult environments.

Common Applications:

• Furnace, kiln, reformer and boiler linings

• Investment casting mold wrappings

• Removable insulating blankets for stress relieving welds

• Reusable insulation for steam and gas turbines

• Flexible high-temperature pipe insulation

• Pressure and cryogenic vessel fire protection

• High-temperature kiln and furnace insulation

• Furnace door linings and seals

• Soaking pit seals

• Furnace repairs

• Thermal reactor insulation

• Expansion joint seals

• Primary reformer header insulation

• High-temperature gasketing

• Glass furnace crown insulation

• Incineration equipment and stack linings

• Annealing cover seals

• High-temperature filtration

• Nuclear insulation applications

• Atmosphere furnace lining

• Field steam generator lining


Unifrax FiberFrax Durablanket S

Thickness: 1/4" SuperThin

Roll Dimensions: 24" x 25' (50 sf)

Best Uses:  The SuperThin 1/4" ceramic blanket is great for high temp insulating in tight spots and space constraints.  Great for insulating prefab fireplace boxes and small tanks.

Unifrax FiberFrax Durablanket S

Thickness: 1/2"

Roll Dimensions: 24" x 25' (50 sf)

Best Uses:  1/2" ceramic blanket is popular for prefab fireplace boxes, smokers, and ontop of baffle bricks for wood burning stoves.  Can also be used as double layer to stagger seams for 1" (2 layers) etc.

Unifrax FiberFrax Durablanket S

Thickness: 1"

Roll Dimensions: 24" x 25' (50 sf)

Best Uses: High temperature exhausts, boilers, tanks, furnaces, steam & gas turbines, etc.

Unifrax FiberFrax Durablanket S

Thickness: 1-1/2"

Roll Dimensions: 24" x 12.5' (25 sf)

Best Uses: High temperature exhausts, boilers, tanks, furnaces, steam & gas turbines, etc.

Unifrax FiberFrax Durablanket S

Thickness: 2"

Roll Dimensions: 24" x 12.5' (25 sf)

Best Uses: High temperature exhausts, boilers, tanks, furnaces, steam & gas turbines, etc.
