ALUMINUM FITTING SIZE CHARTS

ALUMINUM FITTINGS CHARTS

The following charts are for selecting the correct size Aluminum Elbow Covers. For 90° Elbows use the chart on the LEFT, for 45° Elbows, Tee Covers, and End Caps use the chart on the RIGHT.

WARNING! - 90° Aluminum Elbow Covers are Sized DIFFERENTLY than Aluminum Jacketing, 45° Elbow Covers, Tees, and End Caps!

  90° CHART

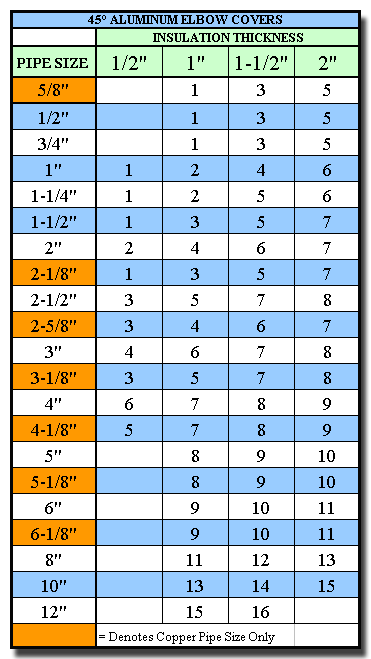

45°/ EndCap / Tee

Purpose: The charts above are used to help identify the Aluminum fitting sizes needed for an insulated pipe.

***Please note that sizes differ between 90° and 45° Elbows (unlike PVC Fittings).

Directions: The column on the left is the size of the pipe and the top row is the thickness of the insulation on the pipe. To determine what pipe size you have, please visit our Easy Order Guide. The Pipe Sizes listed in the left column are "Order This Size" from the Easy Order Guide.

Example: If you are insulating a 3" Iron pipe with 1" fiberglass pipe insulation you would use a #14 Aluminum 90° Fitting and a #6 Aluminum 45° Fitting.

CLICK HERE FOR ALUMINUM JACKETING SIZE CHART

Please contact us with any questions and we will happily advise you on what Aluminum fitting covers to order. CONTACT US
